Kampuh Welding School / 2019
Welding practice with visible feedback
Practise a weld while seeing the parameters of the movement. The simulator puts the torch, workpiece and feedback into the same trainee view.
Muhammad Faisal designed and built the simulator while at a prior employer, which held the Kampuh Welding School contract. His work covered design, development, interaction design and deployment. Simvra has permission to show the project.
What was implemented

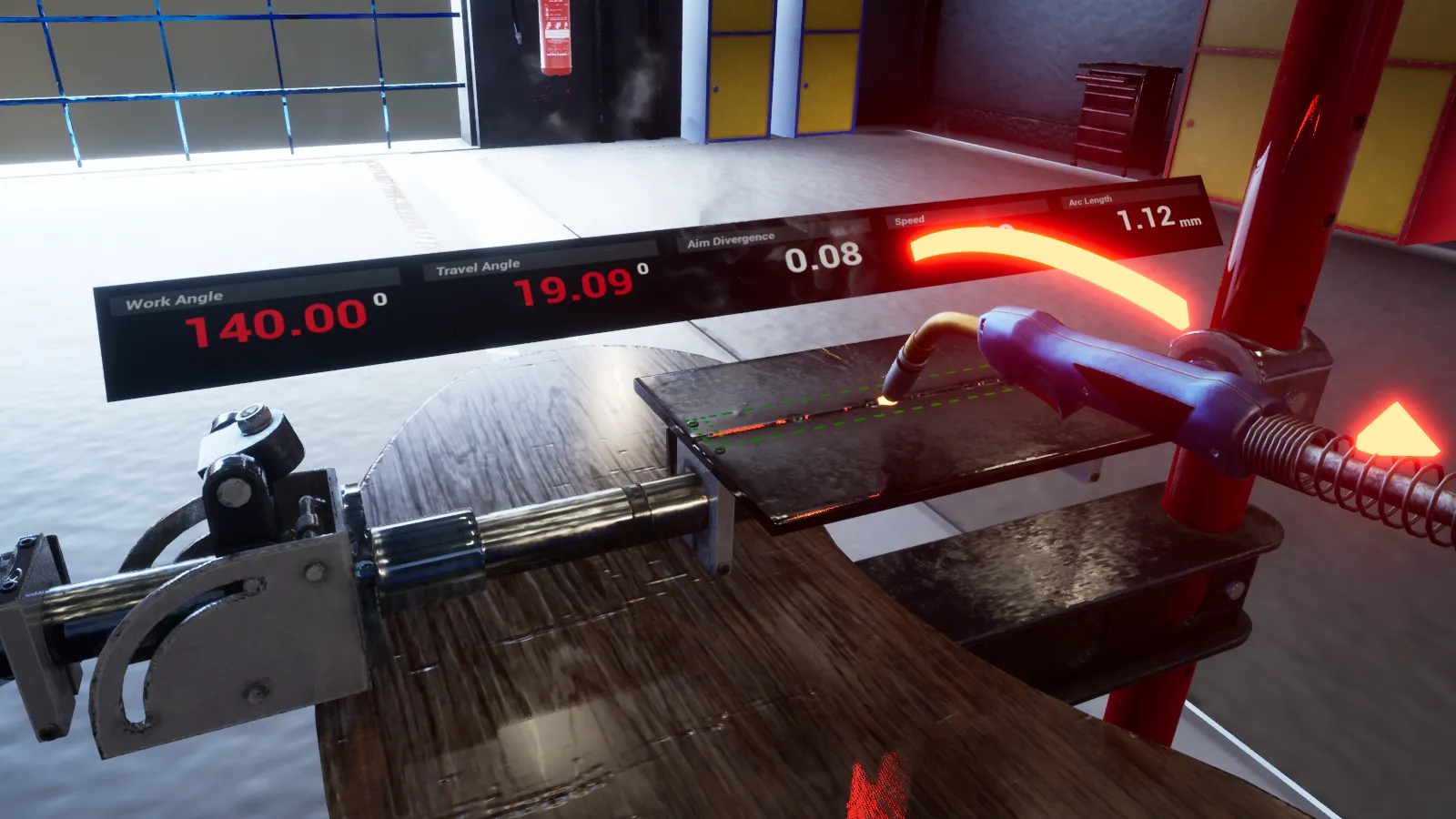

The system scores weld parameters including angle, speed, material and welder type. In the captured build, live readouts show work angle, travel angle, aim divergence, speed and arc length above the workpiece.
The image shows the delivered application and its feedback interface. No measured learning improvement or certification result is claimed for this case.
Delivered setup
- Built for
- Kampuh Welding School
- Platform
- PC VR (Oculus Rift / HTC Vive)
- Setup
- 1 trainee station
- Engine
- Unreal Engine
- Delivery
- 2019 / 5-month build
